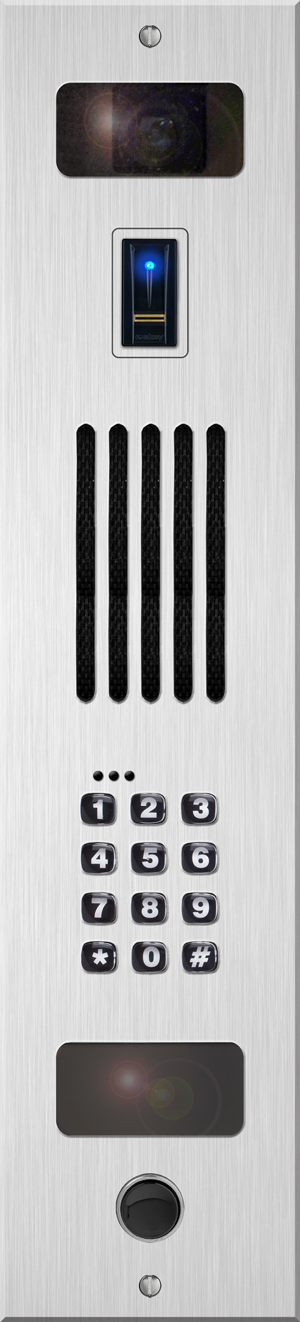

MODEL 547

SLIM LINE ENTRY SYSTEM WITH A SELECTION OF KEYPAD TYPES, CAMERA, BIOMETRIC AND PROX READER OPTION

The Model 547 is a slim line entry access system with an intercom, keypad, biometric solutions and camera, including the option for an IP camera. It also allows the option for a Prox reader. It is offered in a variety of finishes and can be customized.

+ Solid brass (1/4”) faceplate for phone systems and intercoms
+ Includes 3.6 mm camera on adjustable bracket (25 deg left or right adjustment)
+ IP Camera Option: 2.1 Megapixel
- Maximum Resolution of 1920 x 1080 @ 30fps
- PoE (Power over Ethernet) and DC 12V
- H.264 & Motion JPEG
+ Specify keypad type desired:
- Serial ASCII output 547-A
- Stand-alone 12 button 547-S12
- 26 Bit Wiegand output 547-W Click here for information on Wiegand control systems
+ 547-S12 (stand-alone keypad) does not require a controller

+ Face plate dimensions: 17.65” x 4” (h w)
+ Back box dimensions: 17” x 3.4” x 4” (h w d) Model 9342

Example Part Number: 547-W-VIK-CC
Model 547 with Wiegand keypad , Viking intercom, and color camera

INTERCOM

MODEL 547-X-VIK

High performance version using Viking E-40 intercom unit. More Details For Panasonic, specify Viking E-40 with PAN-1 adaptor.

MODEL 547-X-VIK(sip)

VoIP intercom module VIK(sip) for Control4, Elan, Savant, or standard SIP.

> MORE DETAILS

NOTE: The “X” in the part numbers above is to specify the keypad type. See Keypad types

MODEL 547 OPTIONS

HOLOVISION WDR (WIDE DYNAMIC RANGE)
COLOR CAMERA
P/N 9101

+ 1/3 960H SONY Double Scan Super HAD CCD
+ WDR and DSS technology
+ 700TVL Horizontal Resolution
+ 2.97 mm lens
+ Min. Illumination of 0.1 Lux (0 Lux with IR illuminator)
+ Wide Dynamic Range (WDR)
+ DSS (Digital Slow Shutter) / Digital Zoom 3X
+ 2D/3D Digital Noise Reduction
+ OSD with Built-in Joystick Controller
+ Privacy Masking (15 Zones)
+ Super Compact size of 38mm(W) X 38mm(H)
+ Includes IR pass filter (IR illuminator required)

> WDR CAMERA FULL SPECIFICATIONS
