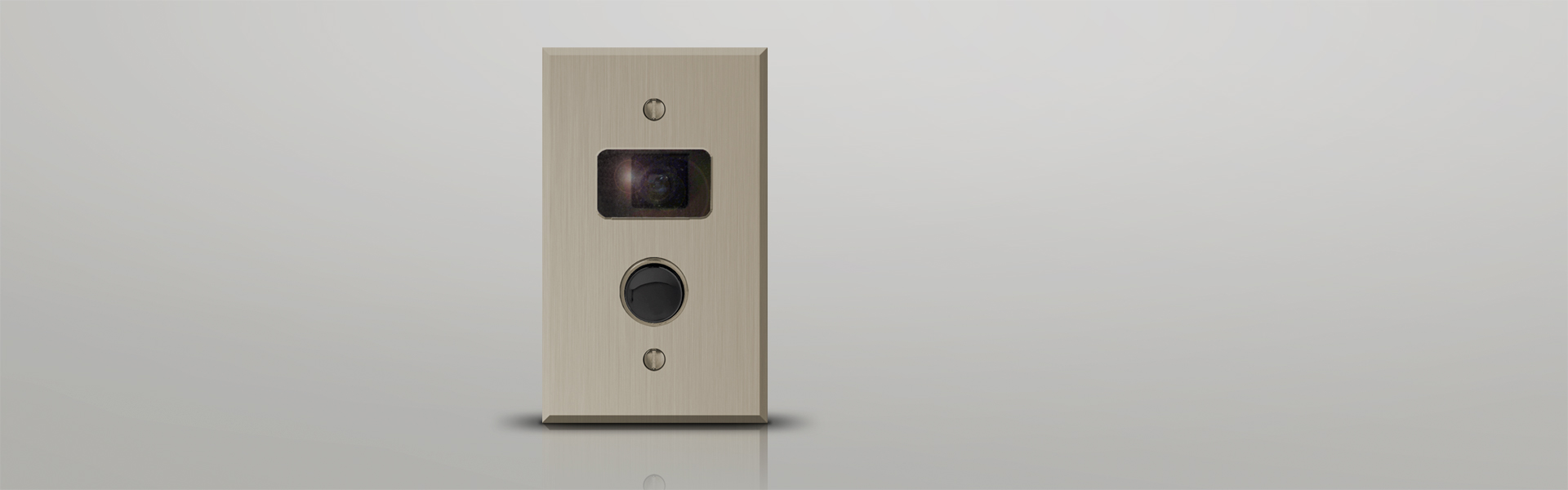

MODEL 597
FLUSH MOUNT CAMERA WITH CALL BUTTON FOR SINGLE GANG BOX
The Model 597 has a camera (including an IP camera option), call button, and fits into a standard single gang box (not included). It is offered in a variety of finishes and can be customized.
+ Solid brass (1/4”) faceplate
+ Includes Analog camera with optional IP camera available at additional charge
+ Call button included (no intercom)

+ Face plate dimensions: 5” x 3” (h w)
+ Fits standard 1 gang electrical box (not included)


Example Part Number: 597-CC-ORB
Model 597 with analog color camera, in oil rubbed bronze finish

MODEL 597 OPTIONS

HOLOVISION WDR (WIDE DYNAMIC RANGE)
COLOR CAMERA
P/N 9101

  • 2.12MP Sony Exmor CMOS Sensor
  • TVI/AHD/CVI/CVBS Selectable by Optional On-Screen Display
  • 3MP Mega Lens
  • 3.6mm Lens default
  • 1080P Video Output (Full HD Transmission Max 300M)
  • Color: 0.08Lux, B/W: 0.008Lux
  • 3D Digital Noise Reduction
  • Sens-up : Color 0.008Lux, B/W : 0.0008Lux
  • UTC Function
  • 32mm square compact size

> WDR CAMERA FULL SPECIFICATIONS


HOLOVISION IP CAMERA P/N 9113

  • 3 MegaPixel Mega 3.7mm Pinhole Lens
  • 25mm Square compact size
  • 2MP Sony Exmor CMOS Sensor
  • TVI/AHD/CVI/CVBS Selectable by On-Screen Display
  • Ultra Low Light Color Camera
  • Color: 0.08 Lux, B/W: 0.008 Lux
  • D-WDR, 3D DNR
  • UTC Function
  • Motion Detection
  • 52dB Signal-to-Noise Ratio

IP camera option not available with VIO2

> IP Camera full specifications


FINISHES

OIL RUBBED BRONZE
STAINLESS STEEL
BLACK POWDERCOAT
SATIN NICKEL
POLISHED BRASS
BRUSHED CHROME
LIGHT ANTIQUE BRASS
POLISHED CHROME
BRUSHED ALUMINUM
VERDE

MANUALS & ACCESSORIES

PRINTABLE SPECIFICATION
> PREWIRE DIAGRAM
> HIGH-RES IMAGE
